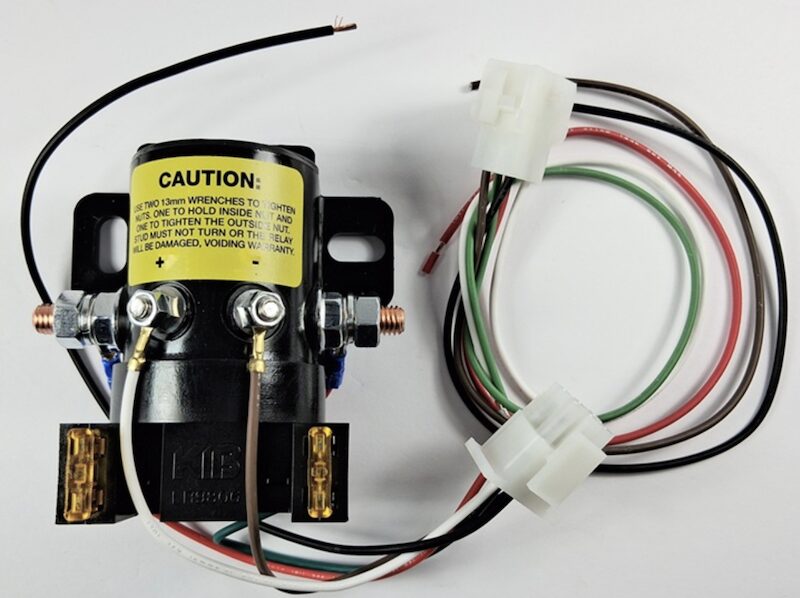

KIB Battery Disconnect Relay LR9806WB

Name: KIB Battery Disconnect Relay LR9806WB
SKU: LR9806WB
Availability: InStock

$129.95

Availability: 1 in stock

Secure Checkout

Coil Rating: 12VDC – 4.4 Ohms
Non-Polarity Sensitive
Min. Activation Voltage 7VDC
Contact Type: 110 amps carry 6-36VDC
Latch Type: Mechanical Push On/Push Off Coil Activated
Latching relay with a single 12 inch 6 Position Plug/Pigtail Harness
The following link is for all LR9806 relays: Battery Disconnect Latching Relay Diagnostics For LR9806
