Xantech 490-00 Micro Link Infrared Receiver


Availability: 48 in stock

SKU: 490-00 Categories: ,
Secure Checkout


New surplus in original box.

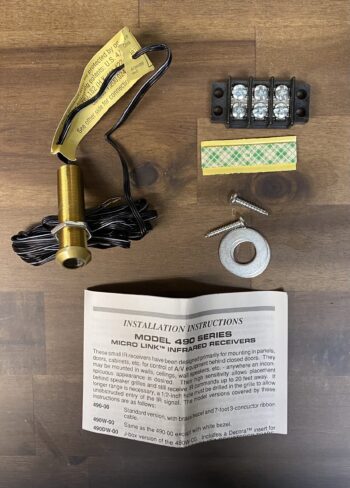

Xantech’s Micro Link IR sensor is only ½ inch in diameter and 2 inches deep. It comes with seven feet of 3-conductor ribbon cable and separate screw terminal block for connecting to a connecting block or additional cable. A RF grid in the sensor’s pick-up windows helps reduce EMI (electro magnetic interference). Typical range is 30 feet and an acceptance angle is 110 degrees. Has a superior infrared modulation frequency bandwidth of 30 to 100 kHz. Requires a Xantech connecting block as well as IR emitters and power supply (sold separately).

shelf 223

Additional information

Weight1 lbs
Dimensions4 × 4 × 4 in
