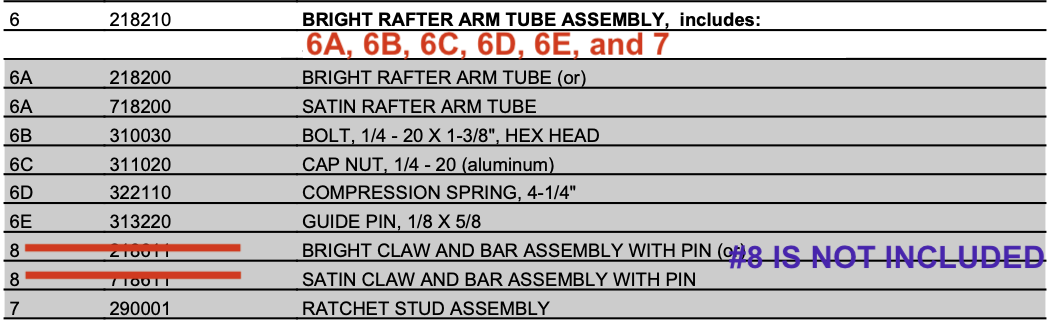

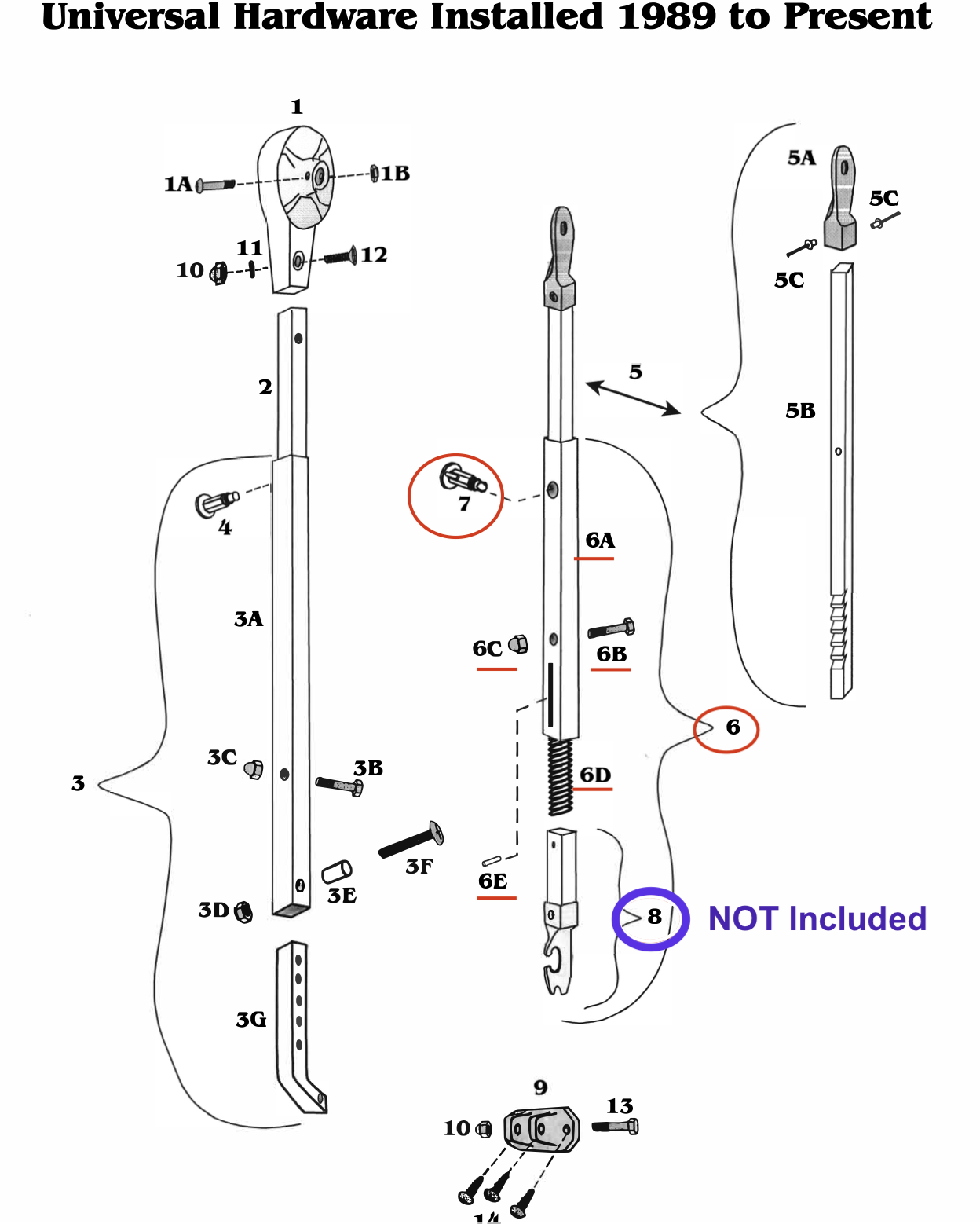

BRIGHT RAFTER ARM TUBE ASSEMBLY, includes:
6A – 218200 – BRIGHT RAFTER ARM TUBE
6B – 310030 – BOLT, 1/4 – 20 X 1-3/8″, HEX HEAD
6C – 311020 – CAP NUT, 1/4 – 20 (aluminum)
6D – 322110 – COMPRESSION SPRING, 4-1/4″
6E – 313220 – GUIDE PIN, 1/8 X 5/8
7 – 290001 – RATCHET STUD ASSEMBKY
THIS ARM TUBE ASSEMBLKY DOES NOT INCLUDE:
8 – 218611 – BRIGHT CLAW AND BAR ASSEMBLY WITH PIN
